Incoloy 8811 • 1.4876 • Alloy 800HT Incoloy

Seamless Tubes Incoloy Alloy | Incoloy 8811 Manufacturers

Manufacturer of Incoloy 8811 | Incoloy 8811 400 | Incoloy 8811 Exporters | Incoloy 8811 Manufacturer Near You | Incoloy 8811 | Incoloy 8811 Supplier | Exporter of Incoloy Alloys

Overview:

Krystal is a renowned exporter, manufacturer, stockist, supplier, and stockholder of high-quality Monel Alloy Seamless Tubes. These nickel-copper alloy tubes are celebrated for their excellent corrosion resistance and high strength, making them ideal for marine, chemical, hydrocarbon processing, and oil and gas applications. Monel alloy tubes maintain their strength and toughness across a wide temperature range and offer excellent weldability and ease of fabrication.

Incoloy 8811 (UNS N08811) / Alloy 800HT (1.4876) is a Nickel-Iron-Chromium alloy designed for excellent strength and resistance to oxidation and carburization at high temperatures. The alloy is specifically engineered for superior creep-rupture properties in temperatures up to 982°C (1800°F).

Incoloy 8811 is widely used across industries where high-temperature performance and resistance to thermal and chemical degradation are critical. Typical applications include heat exchangers, process piping, pressure vessels, superheater and reheater tubing, and industrial furnaces. It is also used in petrochemical and power generation equipment, as well as in chemical processing systems that encounter corrosive environments at elevated temperatures.

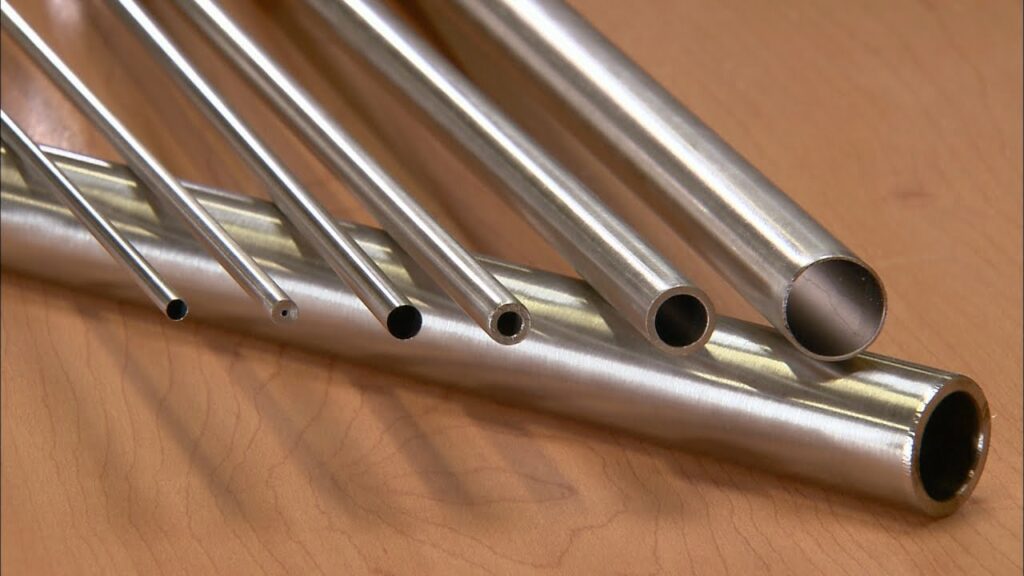

AVAILABLE TUBE PRODUCT FORMS
Straight Tube | Straight Pipe | U - Tube | Coiled Tube
TYPICAL APPLICATIONS
HEAT EXCHANGERS
PRESSURE VESSELS
INDUSTRIAL FURNACES
PETROCHEMICAL
STEAM GENERATORS
CHEMICAL PROCESSING
GAS TURBINES
TYPICAL MANUFACTURING SPECIFICATIONS
- -
- -
Also individual customer specifications.
INDUSTRIES PREDOMINANTLY USING THIS GRADE
CHEMICAL PROCESSES
OIL AND GAS
NUCLEAR AND POWER

Technical Specifications

CHEMICAL COMPOSITION (% by weight)
Element Min Max
Fe >39.5
Ni 30.0 35.0
Cr 19.0 23.0
Ti 0.15 0.60
Al 0.15 0.60
Mn < 1.5
Cu < 0.75
Si < 1.0
C 0.06 0.10
P < 0.045
S < 0.015
Al+Ti 0.85-1.20
PHYSICAL PROPERTIES (Room Temperature)
Specific Heat (0-100°C) 502 J.kg-1.°K-1
Magnetic permeability 1.0092 16kA/m
Melting temperature 1357-1385 °C
Curie temperature -115 °C
Electrical Resistivity 0.989 Ohm-cm
Density 7.94 g/cm3
MECHANICAL PROPERTIES
Temper Hot finished tube
Tensile Rm 517-690 MPa (min)
R.p. 0.2% Yield 172-414 MPa (min)
