ALLOY 314 • UNS S31400 • WNR 1.4841

Stainless Steel Alloy 314 | Stainless Steel Alloy 1.4841 | Super Austenitic Alloy | Seamless Tubes Stainless Steel Alloy | Stainless Steel 314 Alloy Manufacturers

Manufacturer of Stainless Steel Alloy | Stainless Steel Alloy 314 | Stainless Steel Alloy 314 Exporters | Seamless Stainless Steel Alloy 31400 | UNS S31400 | Stainless Steel Alloy Manufacturer Near You | Seamless Stainless Steel Alloy | Seamless Stainless Steel Alloy Supplier | Exporter of Stainless Steel Alloy

Overview:

Krystal is a renowned exporter, manufacturer, stockist, supplier, and stockholder of high-quality Stainless Steel Alloy Seamless Tubes. These tubes are celebrated for their excellent corrosion resistance, durability, and high strength, making them ideal for a wide range of applications including petrochemical, pharmaceutical, food processing, and marine industries. Stainless steel alloy tubes maintain their integrity and performance across various temperature ranges and environments, offering superior weldability and ease of fabrication. This ensures reliable and long-lasting performance in even the most challenging conditions.

Stainless steel grade 314 has excellent high-temperature resistance characteristics among the chromium-nickel steels series. The silicon content in this material improves oxidation and carburization resistance; however, it can become very brittle when subjected to prolonged temperatures of 649-816°C (1200- 1500°F).

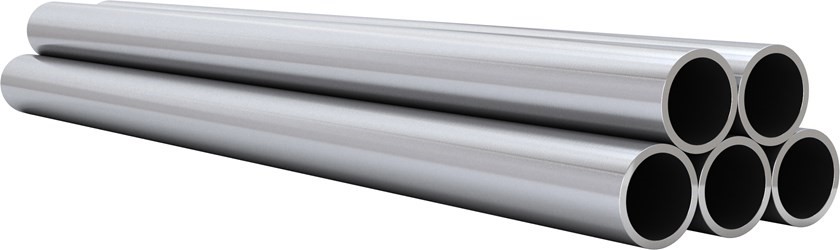

AVAILABLE TUBE PRODUCT FORMS
Seamless Straight Tube | Straight Pipe | U - Tube | Coiled Tube
TYPICAL MANUFACTURING SPECIFICATIONS
- -
- -
-
TYPICAL APPLICATIONS
CHEMICAL PROCESSES
HIGH TEMPERATURE
AUTOMOTIVE
CONTROL LINES
INDUSTRIES PREDOMINANTLY USING THIS GRADE
CHEMICAL PROCESSES
OIL AND GAS
AUTOMOTIVE

Technical Specifications

CHEMICAL COMPOSITION (% by weight)
Element Min Max
C - 0.20
Si 1.50 2.50
Mn - 2.00
P - 0.045
S - 0.15
Cr 24.00 26.00
Ni 19.00 22.00
N - 0.11
Fe Balance
PHYSICAL PROPERTIES (Room Temperature)
Specific Heat (0-100°C) - J.kg-1.°K-1
Thermal Conductivity - W.m -1.°K-1
Thermal Expansion - mm/m/°C
Modulus Elasticity - GPa
Electrical Resistivity - Ohm-cm
Density - g/cm3
MECHANICAL PROPERTIES
Temper Annealed
Tensile Rm - ksi (min)
Tensile Rm - MPa (min)
R.p. 0.2% Yield - ksi (min)
R.p. 0.2% Yield - MPa (min)
Elongation (2” or 4D gl) - % (min)
